Description
Keyboard: 88-key, fully-weighted, hammer-action with velocity and pressure (aftertouch) sensitive adjustable keys (Fatar TP/40L)

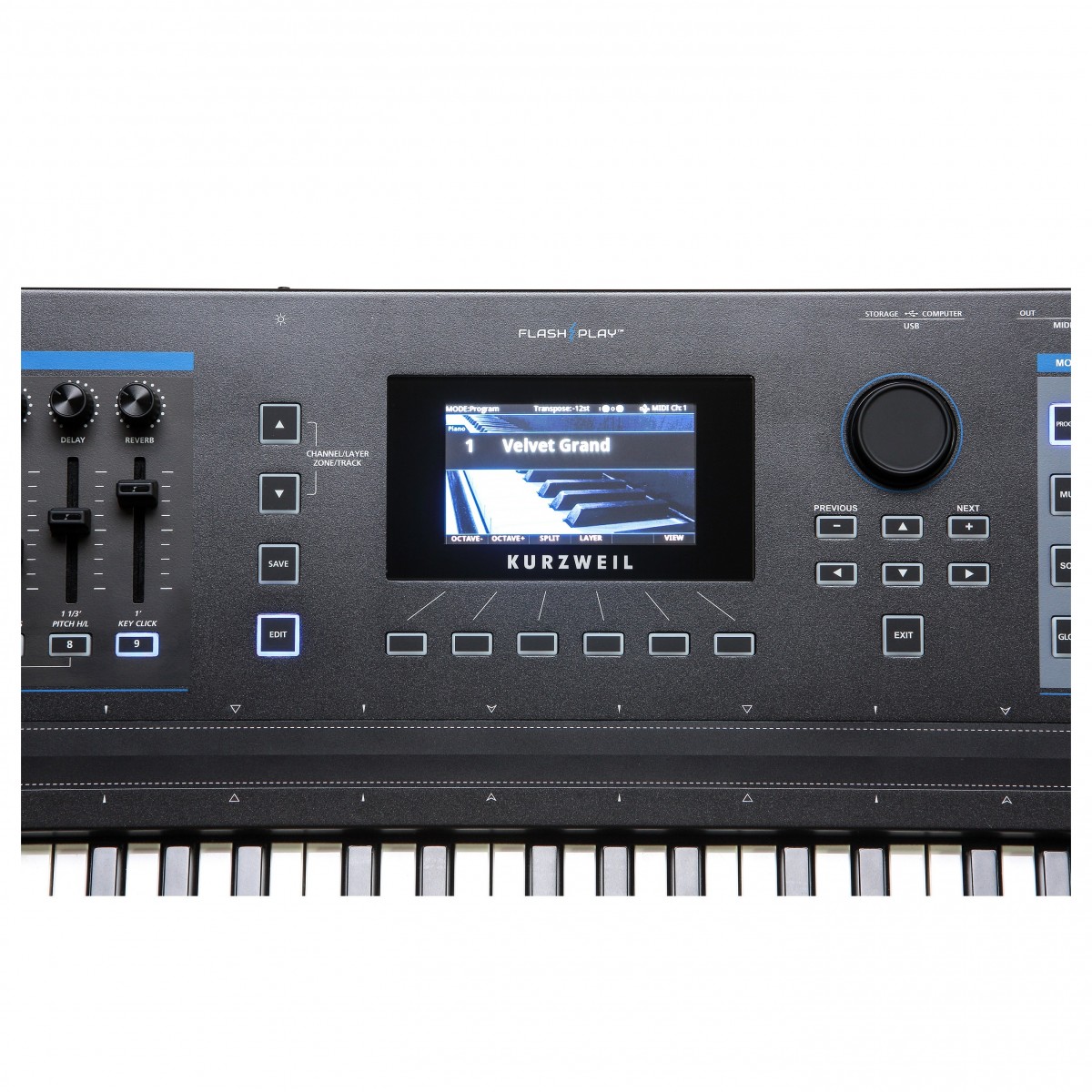

Display: 480 x 272 pixel high resolution color LCD with adjustable brightness
Polyphony: 256 voice polyphony, dynamically allocated
Multitimbral: 16 parts (one per MIDI channel)
Architecture:
– Dynamic VAST: powerful synthesis engine, with user-programmable DSP algs and routing.
– Cascade Mode: route one layer through the DSP of any other layer within a program – up to 32 consecutive layers deep!
– KB3 ToneReel Engine
– 6-Operator FM Engine
– VA1 Virtual Analog Oscillators + DSP
Sample Flash Memory:
– 2 GB factory samples
– 2 GB of re-loadable, non-volatile, user flash memory
Factory Programs: 2042
User Programs: 4000
Factory Multis: 587 (up to 16 independent controller zones)
User Multis: 4000
General MIDI: No
Kurzweil String Resonance: Yes
Master EQ/Compressor: Yes
Effects: Over 1000 complex effect chains, incorporated into programs featuring our award winning effects – reverbs, delays, chorus, flange, phaser, EQs, distortions, rotary speaker simulators, compressors, and more, 32 total FX units

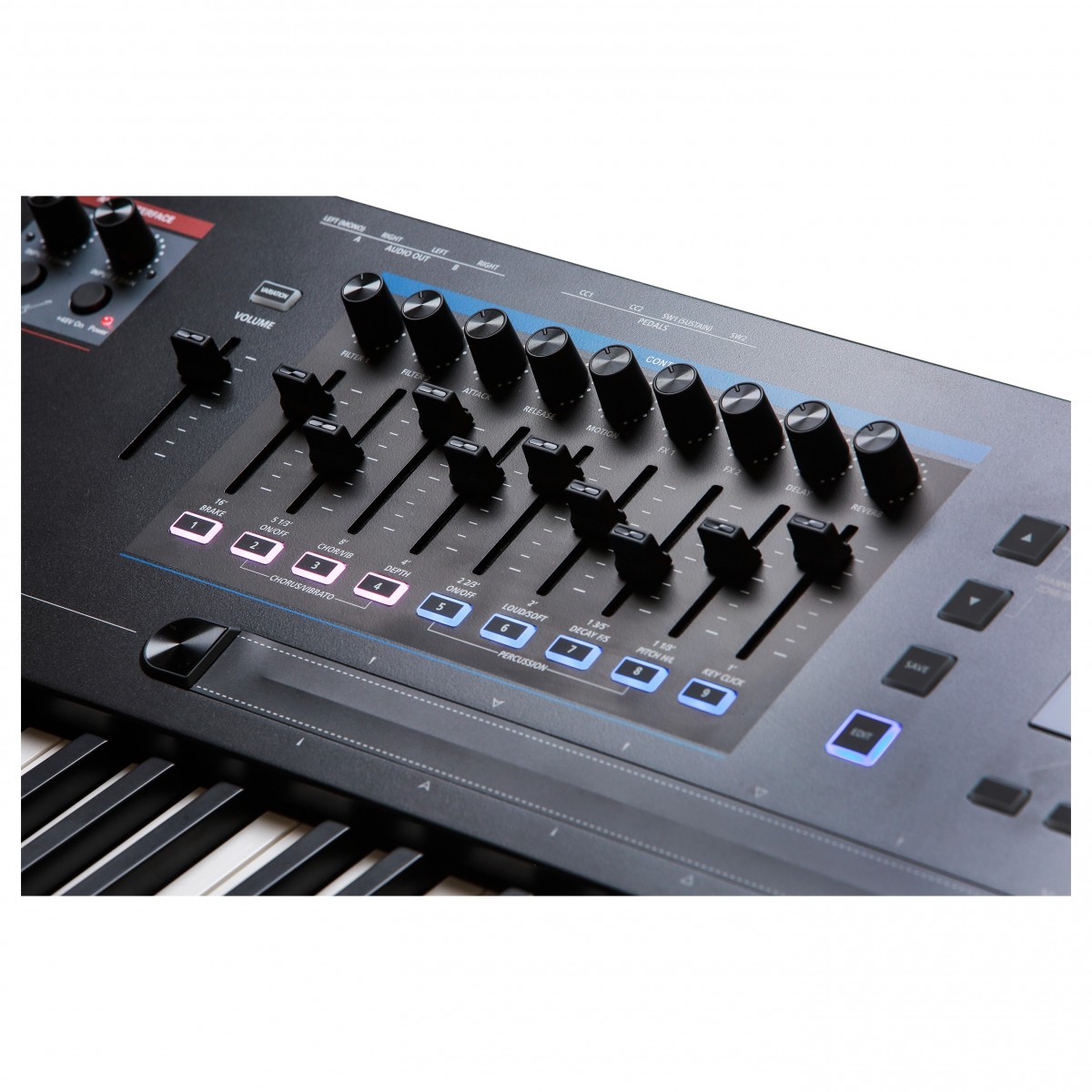

Controllers:
– Monopressure (aftertouch)
– 1 pitch wheel
– 1 assignable modulation wheel
– 1 assignable ribbon controller
– 9 assignable sliders
– 9 assignable knobs
– 10 assignable buttons
– 2 transpose switches
– Tap tempo button and tempo knob
– Arp controls
– Transport controls
– *2 switch pedal inputs each supporting single/dual switch pedal or single half damper pedal (1 switch/sustain pedal is included; half-damper pedals sold separately)
– 2 continuous control pedal inputs
Sequencer: 16 Tracks; 960 PPQ resolution. Song editing functions include both event and track-based tools like quantize, swing, remap, controller scaling and more.
MIDI CC Step Sequencers: 16 simultaneous
Riffs: 16-per Multi
Arpeggiators: 1-per Program, 16-per Multi
System Sample Rate: 48kHz
Analog Outputs:
– Four (2 pairs) 1/4″ balanced TRS analog (32-bit DACs)
– Automatic mono switching on main outs
– +21dBu maximum output
– 50Ω balanced source impedance
Audio Inputs: Two 1/4” jacks (one stereo pair) accepting Line/Instrument level signals.
Headphones:
– 1 back panel 1/4″ headphone output
– 130mW into 32 ohm headphones
MIDI: In, Out
USB:
– Complete MIDI functionality over USB
– User Object file transfer to/from USB Flash Drive
– Operating System updates from USB Flash Drive
Software Editors: External editors for Mac OS X, Windows PC and iPad*
(*coming soon)
FREE OS Updates: OS updates via USB drive
Included Accessories: Power cable, switch pedal, USB cable
Height: 5.1” (13.0 cm)
Depth: 15.5” (39.5 cm)
Length: 51” (129.5 cm)
Weight: 49.3 lbs. (22.38 kg)
Power: Internal power supply
